A-Kabel Aircraft dongle
A-Kabel fly løsning
Med aircraft dongle tilkoblet flyets cockpit gir det deg umiddelbar kommunikasjon (full duplex) mellom bakkemannskap og cockpit. Bakkemannskap kan gå innenfor en radius på 50m fra aircraft dongle og fortsatt kommunisere med cockpit.
Når hodesettet og dongelen først har blitt parret (tar noen sekunder) kan enhetene skrus på og disse kobles til automatisk.
- Passer til AK6591 og AK6592
- Drives av 2 xAA batterier. (oppladbare kan også brukes)
A-Kabel bluetooth hodesett med full duplex kommunikasjon
A-Kabel Bluetooth hodesett
A-Kabel gir deg her et hodesett/hørselvern med god støydemping og full duplex kommunikasjon (intercom inntil 2 personer). Hodesettene er parret via bluetooth og vil ikke forstyrre andre enheter innenfor samme område. Passer perfekt for team på 2 der kommunikasjon er kritisk. F eks under trefelling, graving osv. Hodesettet kan også brukes som som «stand alone» hørselvern med bluetooth tilkobling til mobil. Kommer med hodebøyle eller hjelmfeste.
- Benytter 2x AA batterier (oppladbare kan brukes)
- Støydempet mikrofon.
- Norsk produsent.
- Kryptert kommunikasjon med hodesettene.
- Reservedeler finnes for lengere levetid.
Active Splitter
The Active Splitter
The ACTIVE SPLITTER from IWCS addresses several commonly occurring requirements for aviation crews. It provides easy connection of two headsets while occupying only one port on your ICS, potentially doubling the headset capacity of your ICS.
The ACTIVE SPLITTER creates full intercom between the attached headsets and offers independent volume control for each. The ACTIVE SPLITTER can also function as impedance matching and provide signal amplification for those situations where you run into incompatibility between headset and ICS. Each headset port on the ACTIVE SPLITTER is
independently configured for the specific headset type.
Configurations options:
- ICS-type: Dynamic or Amplified Microphone Input
- Headset 1 input: Dynamic or Amplified Mic. Input
- Headset 2 input: Dynamic or Amplified Mic. Input
- Independently selectable microphone gain for each headset connection
- Independently selectable (ON/OFF) 24V phantom supply for each headset connection
- Independently selectable phantom supply impedance for each headset connection
- Independently selectable connector wiring for each connection (NATO-US/Savox/Peltor)

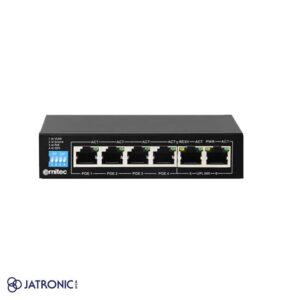

ERNITEC 4 Port Gigabit PoE Switch
ERNITEC 4 Port Gigabit PoE Switch
- Produkt Ethernet PoE
- Porter 4
- Hastighet 1Gbps
Example on intercom system
In this case, there are 4 wireless users with iricomm 3.0 waterproof headset.
3 radios are connected. 1 VHF, 1 UHF and 1 TETRA radio.
All radios have their respective PTT buttons. In addition, you can key each radio via the headset by choosing which radio to key from the PTT switch panel.
An iriselect pre-programmed control panel is also connected to such a system.
Iriselect makes it possible to group users with whom they can talk to and who should have access to which radio in the system.
Se example on Intercom setup here
Contact sales at Jatronic to design your intercom system.
iriBelt MKII
IRIBELT MKII
When none of our fully wireless iriComm 3.0 solutions match your requirements, iriBelt is the next best thing you can get to being fully wireless. iriBelt connects to an iriInsert speaker/microphone combo, which is designed to fit in a Gecko MK11 marine safety helmet. For other helmet types, please contact us to hear about the posibilities. iriBelt MKII has two PTT buttons enabling remote activation of up to two external radios. Improved operational range with normal/long-range capabilities.
KEY FEATURES:
- Fully waterproof, IP67
- 2.4GHz wireless
- Voice prompts
- Connects to the iriInsert speaker/microphone combo
- Connects wirelessly to an iriConnect
- Connects wirelessly to another iriBelt or any iriComm 3.0 unit in twin-com mode
- >18 hours operation between charges
Part number:
Orange/Black IR-20-2011OBK-01-IR006
Blue/Black IR-20-2011BBK-01-IR006
iriBoost - 100 W Class D amplifier for hailer.
INTEGRATE YOUR LOUDHAILER WITH THE INTERCOM
iriBoost is the missing link between your intelligent iriSound Intercom system and your external loudhailer.
A loudhailer is often a stand alone feature having its own handheld microphone — or a feature of the onboard VHF radio. With iriBoost you can integrate the loudhailer function with your iriSound intercom system—one system that does it all—and with additional benefits.
iriBoost is an intelligent 100W CLASS D amplifier that can drive a powerful loudhailer.
All iriSound models are equipped with 2 AUX ports capable of outputting superior sound quality. By connecting iriBoost to a spare AUX port, your loudhailer becomes an integrated part of your iriSound Intercom system using the headset microphones.
If your iriSound Intercom system includes an iriSelect, it is possible to configure the settings so that only selected users can speak on the hailer. It is even possible to activate the loudhailer wirelessly from an iriComm headset—e.g. while standing out on the deck.
CONNECTIONS:
- Audio from iriSound
- External powered
iriBridge - 2ch
iriBridge is intended for small vessels with a crew of max. 2 and no radio integration is required.
iriBridge can also be used on larger boats where a simple, wireless person to person connection is required.
Key features:
- 2 Wireless headset channels for connection of headsets
- Fully analog audio design
- Preconfigured side tone suppression
- Fully waterproof design (with sufficient protection of antenna connectors)
- Simple headset pairing with 3rd party headsets
- Power supply 5VDC/200mA (USB connector)
iriBridge- R - 2ch + Radio interface
iriBridge-R is intended for small vessels with a crew of max. 2 and integration of one external radio.
iriBridge-R can also be used on larger boats where a simple, wireless person to person connection is required and remote radio activation (Push-To-Talk) is desired.
Key features:
- 2 Wireless headset channels for connection of headsets
- 1 External radio connection (radio model to be specified when ordering)
- Fully analog audio design
- Preconfigured side tone suppression
- Remote, wireless radio activation (PTT)
- Fully waterproof design (with sufficient protection of antenna connectors)
- Simple headset pairing with 3rd party headsets
- Power supply 10-36VDC/300mA
When ordering, please choose the brand and model of your radio, and we will pre-configure the unit with the right settings
iriComm 4.0 Wired Headband/Helmet
IWCS
iriComm 4.0 Wired is our brand new rugged and waterproof headset.
iriComm 4.0 Wired has the same features as a standard wired headset, plus Situational Awareness function and 3-Mode LED light.
This version requires power from the external radio or IWCS Headset Interface, when the headset is used as a part of iriSound Intelligent Intercom.
iriComm 4.0 comes in various configurations, and can be interfaced to external handheld radios, fixed radios, iriSound Audio Mixers.
- IP67 waterproof rating
- Noise Cancelling Microphone
- Situational Awareness
iriComm 4.0 Wireless Headband/Helmet
IWCS
iriComm 4.0 Wireless is our brand new headset. IriComm 4.0 Wireless has the same features as a standard wireless headset, plus Situational Awareness function and 3-Mode LED light
iriComm 4.0 Wireless works on the 2.4 GHz band and connects to iriSound Solutions (Intelligent Intercom), to mobile phones and even Peer To Peer. iriComm 4.0 supports two simultaneous connections at the same time.
iComm 4.0 comes in various configurations, and can be interfaced to external handheld radios, fixed radios, iriSound Audio Mixers.
- IP67 waterproof rating
- Noise Cancelling Microphone
- Situational Awareness
Part number:
- Headband: IR-35-2112-01-XXXXX
- Helmet: IR-35-2212-01-XXXXX
iriConnect External Antenna (10 cm) 2.7dBi
iriConnect external antenna is a digital Audio/Data access point for any wireless connection.
The external 2.7dBi antenna privides a uniform 180 degree coverage field (must be mounted in a vertical position).
This unit is fully waterproof and can be mounted on a targa-frame or bimini top.
- 2.4 GHz Connectivity
- Powered by iriSound
- IP67 Waterproof for outside installation
Used with:
- iriComm Headsets
- iriBelt
- Audio Link
- Mobile Phone
- Various 3rd party headsets
Available with REAR or BOTTOM cable connection
Part number:
Bottom cable connection IR-20-1053B-01
Rear cable connection IR-20-1053R-01
